Face milling · HSC operations

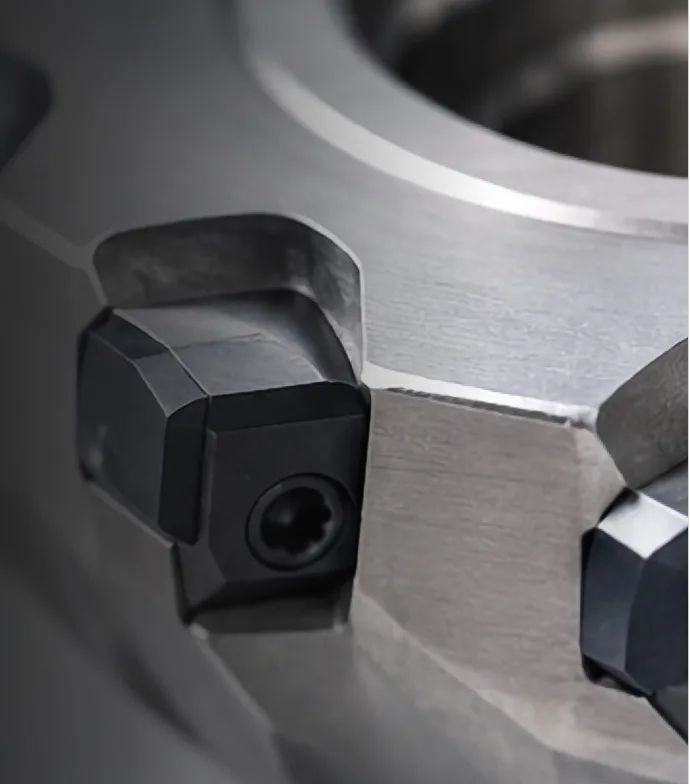

PCD cartridges for face mill cutters
- Finishing
- Facing
- Corner milling
- HSC
Combination finishing & facing setup
0.006 – 0.008 mm
- 01

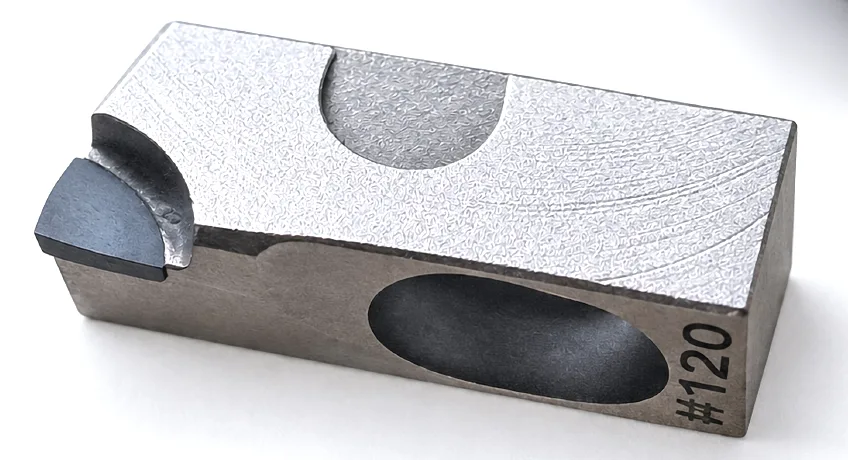

High-precision PCD cartridges
Polycrystalline diamond cutting edges for finishing, facing and corner milling.
- 02
Internal coolant supply
Coolant routed through the body directly to each cutting edge.
- 03
Precision balancing to DIN 69888
Balanced for stable running at HSC spindle speeds.
- 04
Axial run-out adjustment
Each cartridge is set axially to micron level.
- 05
Secure clamping and adjusting screws
Cartridges are positively clamped and individually adjustable.
- 06
Lightweight aluminium-alloy body
Low mass for high spindle speeds. Ø63 mm body in steel.
- Premium PCD material
- High wear resistance
- Consistent performance
- Precision · stability · surface finish
Technical data
PCD finishing, facing & corner milling cartridges for HSC. All dimensions in mm. Drawings schematic, not to scale.

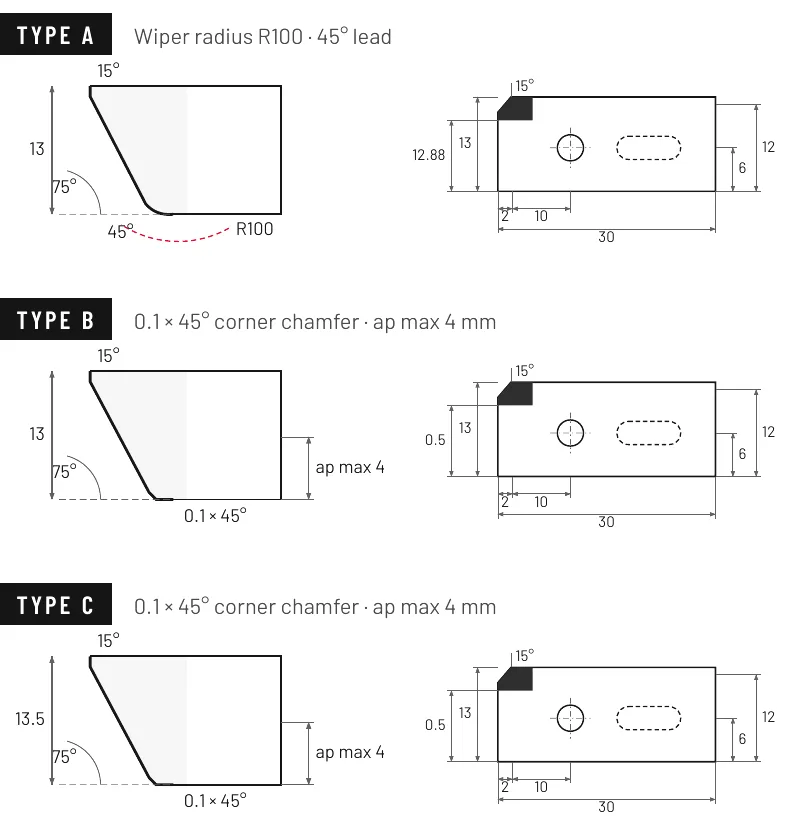

Cartridges
- Type AWiper radius R100 · 45° lead
- Type B0.1 × 45° corner chamfer · ap max 4 mm
- Type C0.1 × 45° corner chamfer · ap max 4 mm

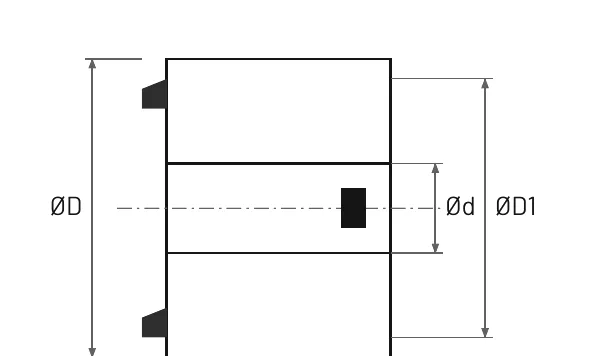

Basic body · dimensions to DIN 8030
- Basic body supplied with:
- balancing screws and clamping screws fitted. Cartridges not included.
- Cartridges supplied:
- without clamping screws.
Spindle & cutting speeds
| Diameter Ø mm | Spindle max. min⁻¹ | Cutting max. m/min |
|---|---|---|
| 63 | 20,000 | 3,960 |
| 80 | 24,360 | 6,120 |
| 100 | 21,650 | 6,800 |
vc = π · D · n / 1000, rounded to 10 m/min. Permissible maximums; verify against tool, machine and workpiece conditions.
Ordering example
Corner mill, complete tool Ø63 mm, Z = 3
1 × basic body · 3 × corner cartridge
Ordering example
Face milling cutter Ø80 mm, Z = 5
1 × basic body · 4 × facing cartridge · 1 × finishing cartridge
Check your cutting speed
Cutting speed vc
3,020m/min
49% of permissible max6,120 m/min
vc = π · D · n / 1000, rounded to 10 m/min. Maximums from our PCD cartridge datasheet; verify against tool, machine and workpiece conditions.
Technical data are for guidance and subject to change without notice. Performance depends on machine, clamping, coolant and workpiece material. Special geometries and diameters available on request: call +91 96112 36211 or email connect@value-tools.com.
